 Caution
in maintenence
|
※ Attention
Before doing maintenance, depressurise
the housing by push test key as
it is always under pressure!!! |
| |
◆

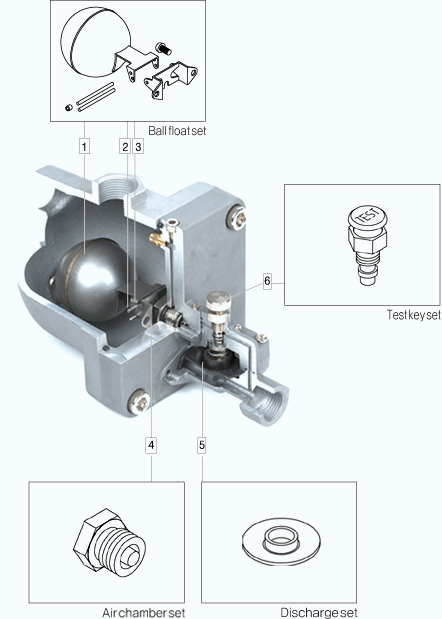

Maintenance parts
▶Ball
float set : 1, 2, 3
▶Test
key set : 6
▶
Discharge set : 5
▶Air
chamber set : 4
▶Etc
overhauling set |
| |
 |
| |
◆
Please require the
other sets except above parts
to our sales agency or Ace corp.
◆
Informantion for shuttle
valve parts exchange.
▶
If drain operate considerable
times, you should exchange shuttle
valve including discharge sets
because shuttle valve coated
by NBR or VITON rubber.
|
| |
| Trouble
shooting |
Type
of
trouble |
Cause |
Solution
(* mark means only expert) |
No
discharge |
No
pressure |
Refill
pressure |
Condensate
don't come in |
Reinstall
based on principal(check
balance line and slope) |
Blocked
in inlet line |
Cleaning
inlet |
Leaking |
Blocked
in pilot line |
Cleaning
pilot line by depart relevent
parts |
Out
of life in wearing parts |
Call
to concerned person |
|
| |
| Please
get ready for winter season
|
| During winter,
we would like to recommend to
install Heater manufactured by
Ace corp. because ball float can
be distorted in freezing-up. In
that case, we can't offer free
charge of service. |
| |
|
