※Caution
  Connecting outlet line, please use pipe line over 10mm inner size without back pressure.

※ Caution
For stable installation, be sure to install balance line and use 8~10mm bronze pipe or high pressure hose.

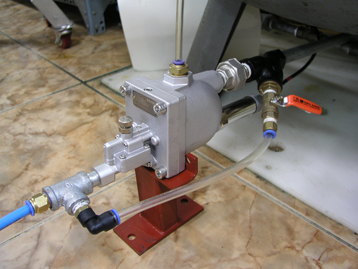

Connect balance line "T" from gauage at service tank like above picture.

※ Application
Air receiver tank, Turbo inter-cooler, after-cooler and head.

※ Caution
In the case of reciprocating compressor, use flexible hose at point of inlet due to severe vibration.



※ Application
After-cooler, medium and large dryer, large filter and head.

※ Caution
In the case of condensate inlet is so low to the ground, be sure to use balance line. If not , it only be functioned by test key without automatic discharge condensate



※ Application
Service tank which inlet is so low to the ground.
